SP10013

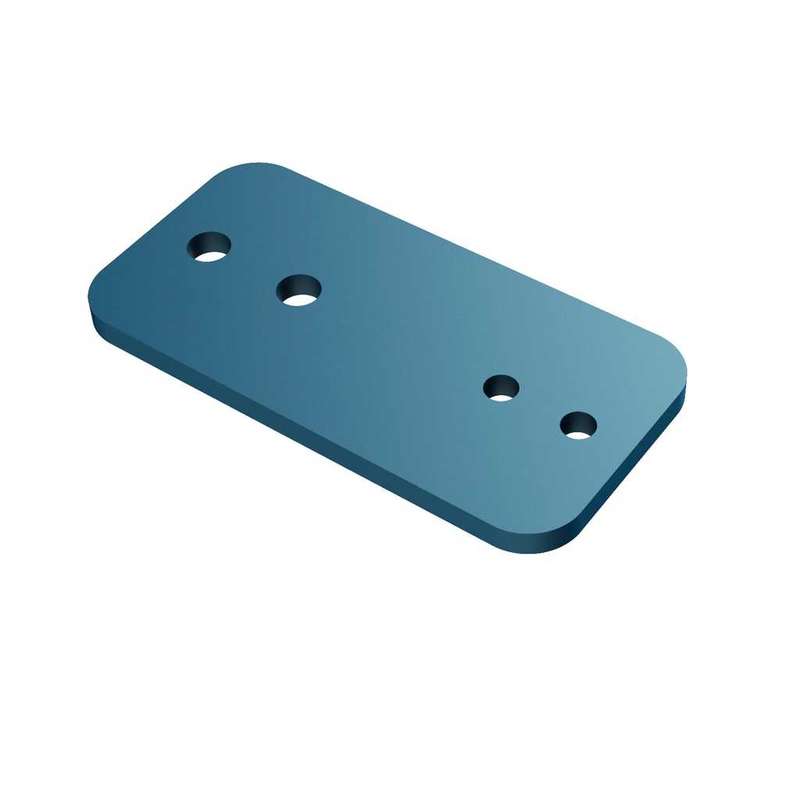

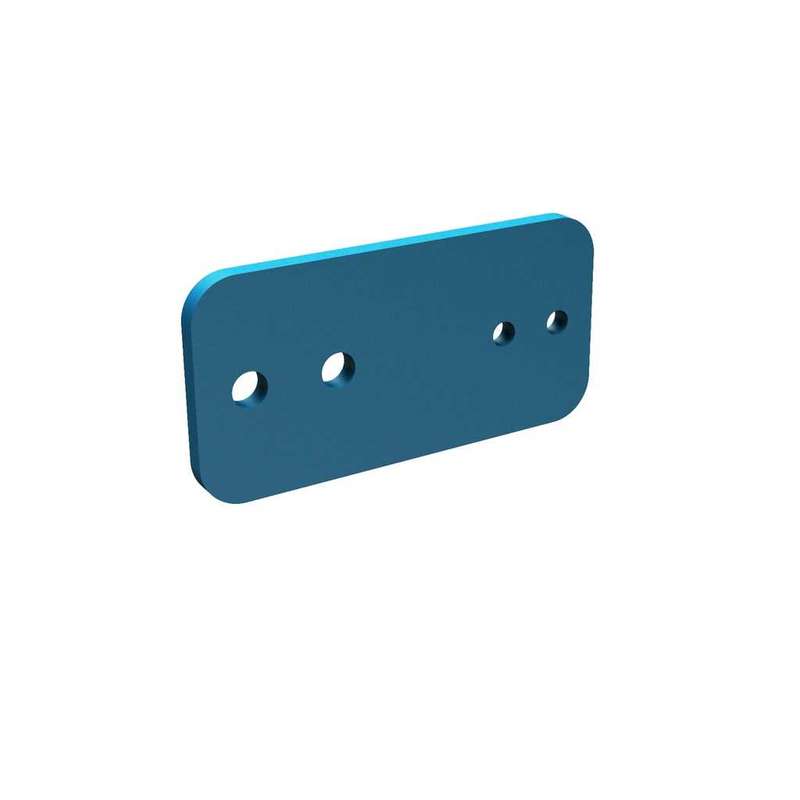

Flat rectangular mounting plate with rounded corners and four holes, two of them located at plate edge and the other two at the opposite plate edge.

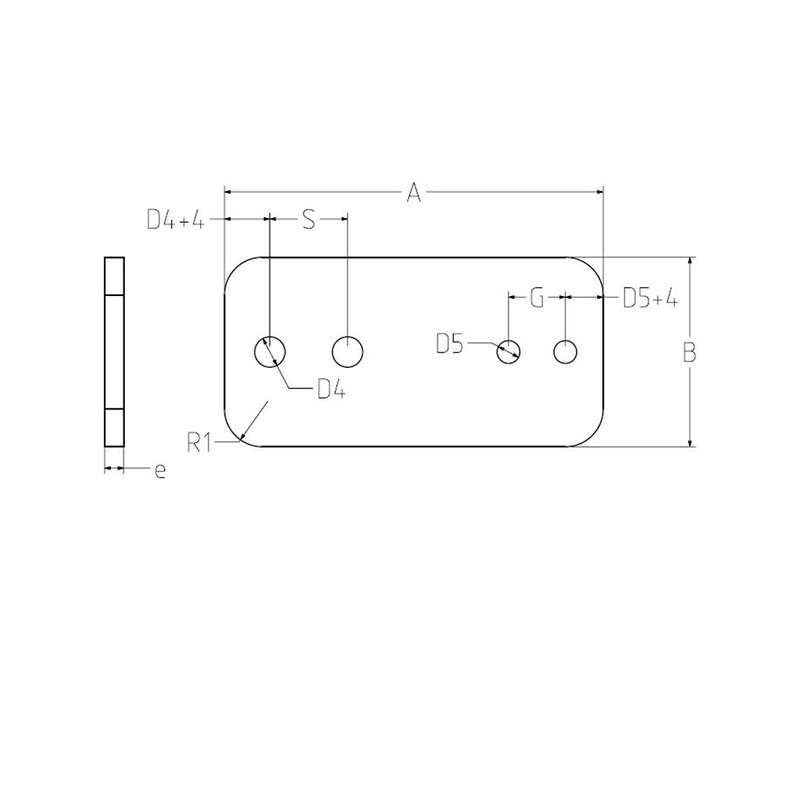

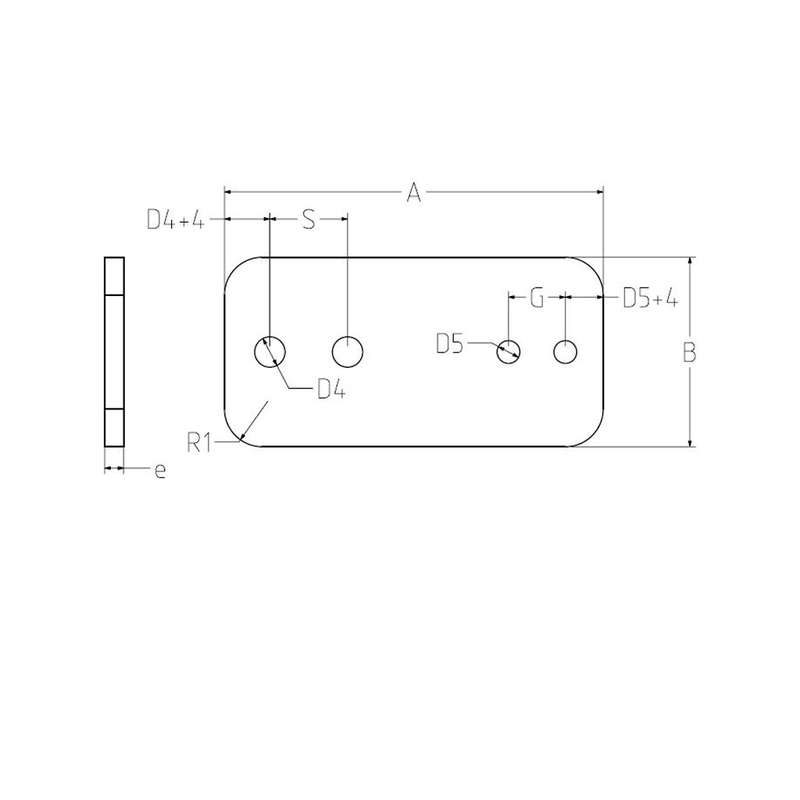

General plate and holes dimensions, corners radius and holes distances on each edge are configurable.

Material, thickness and surface finish are also configurable.

See available options in the product configuration form.

ALL DIMENSIONAL VALUES MUST BE INTRODUCED IN MILLIMETERS (mm)

Complete form fields in the order they appear (top to bottom, starting with “Material”)
